Specifications

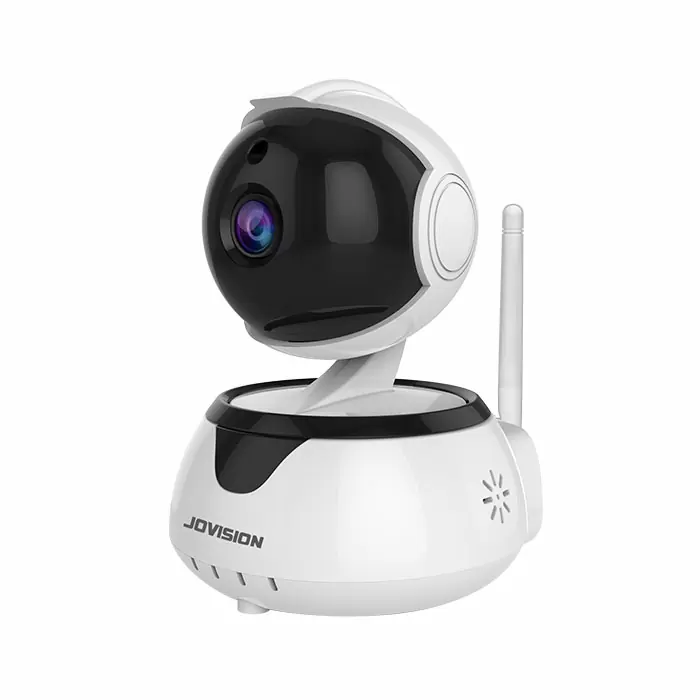

| Model | JVS-HD301C |
| Camera | |
| Image Sensor | 1/3” CMOS Sensor |
| Max Resolution | 1920×1080 |
| Effective Pixels | 2.0MP |
| Compression Standard | H.264 |
| Framerate | 20fps |
| Bitrate | 128Kbps~1024bps |
| Lens | |
| Lens | 4mm |
| Viewing Angle | H 60°, V 53°, D 89° |
| IR Light | 10x IR LEDs |
| IR Distance | Up to 15m. |
| Function | |
| Privacy Masking | Supports 4 Zone masking |
| Exposure Mode | Auto |
| Automatic Gain Control | Auto |
| White Balance | Auto |
| Motion Detection | Support |
| Day-Night Vision | IR-CUT, Supports Color/B&W Switch |
| Remote Control | System Management, Audio/Video Management, Image Management, Storage Management, Alarm Management, Network Management. |
| Detection Alarm | E-mail Alarm, Client-end Alarm, Smartphone Message Alarm |
| Two-way Talk | Support |
| Pan/Tilt | Pan 350°, Tilt 117° |
| Interface | |
| Audio Input | 1 Channel Internal MIC |
| Audio Output | 1 Channel Internal Speaker |

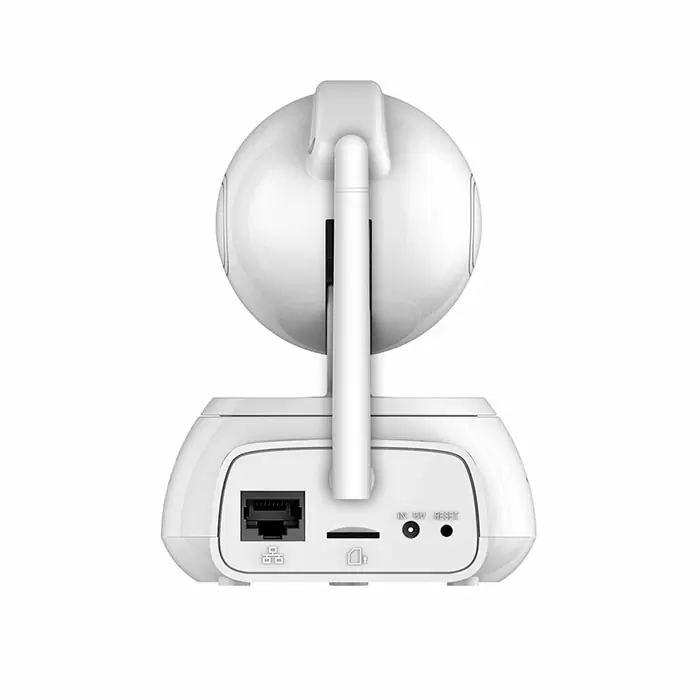

| Ethernet Port | Yes |
| SD Card | Support Max. 128GB |
| Reset switch | Support |
| Audio Input | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Wi-Fi | Wi-Fi (IEEE802.11b/g/n), 2.4Ghz |
| Stream | Dual stream |
| Protocols | TCP/IP, ICMP, UDP, SMTP, DHCP, DNS, PPPoE |
| Network Transmission | CloudSEE P2P Transmission Protocol |
| General | |
| Power Supply | DC5V / 1.5A |
| Consumption | 5W |
| Working Temperature | -10°C~55°C |
| Working Humidity | 10%~90%Rh |
| Color / Material | White + Black/ ABS + PC |
| Dimensions | 91x88x122.5mm |
| Installation | Wall, Ceiling, Desktop |
